RDF Municipal Waste Shredding Machine | European Components, Assembled in Egypt – High Recycling Efficiency, Up to 20 Tons/Hour Capacity

With over 30 years of industrial expertise, Mansoura for Engineering Industries presents its latest innovation in waste recycling technologies — the RDF Municipal Waste Shredding Machine. This machine is specially designed to match the nature of waste in the Middle East, North Africa, and the Gulf region.

Smart engineering design

ensures easy assembly, disassembly, and fast maintenance.

Environmentally focused design

based on a thorough study of material behavior, moisture levels, and waste types for maximum efficiency.

High production capacity

production capacity of up to 20 tons/hour (depending on moisture content and material density).

via high-capacity inverters to reduce stress on electrical and mechanical parts, conserve energy, and provide mechanical braking in case of high torque due to material resistance during standard operation.

Flexible performance and advanced control of speed and output through a VFD system

comprehensive warranty and spare parts

One-year comprehensive warranty covering all machine components

Technical Specifications

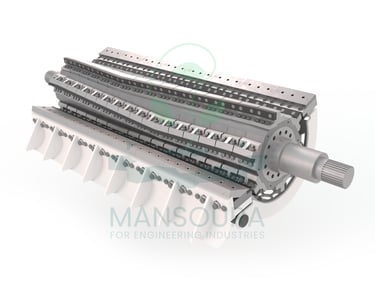

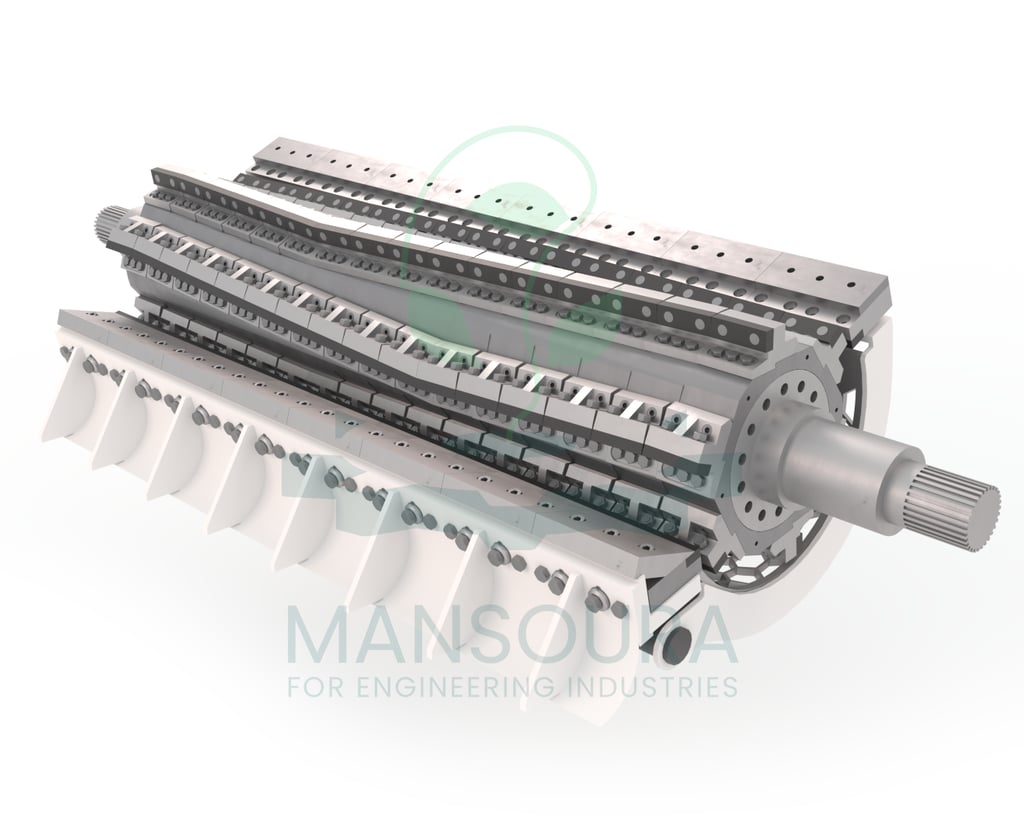

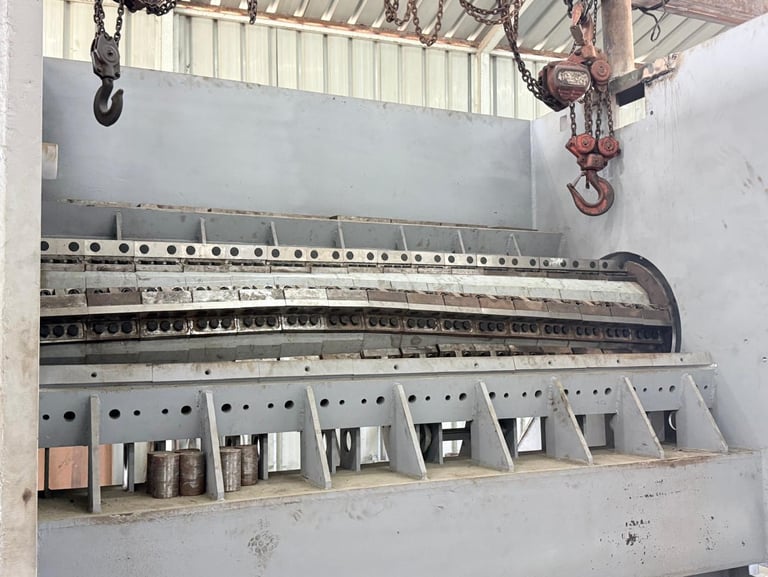

Equipped with 96 rotary blades, distributed across 6 rows along the shaft. Each blade is mounted on an independent Holder for easy disassembly and replacement.

Rotary knives and knive Holders

Two German motors, each rated at 150 HP, providing a total of 300 HP.

Motors

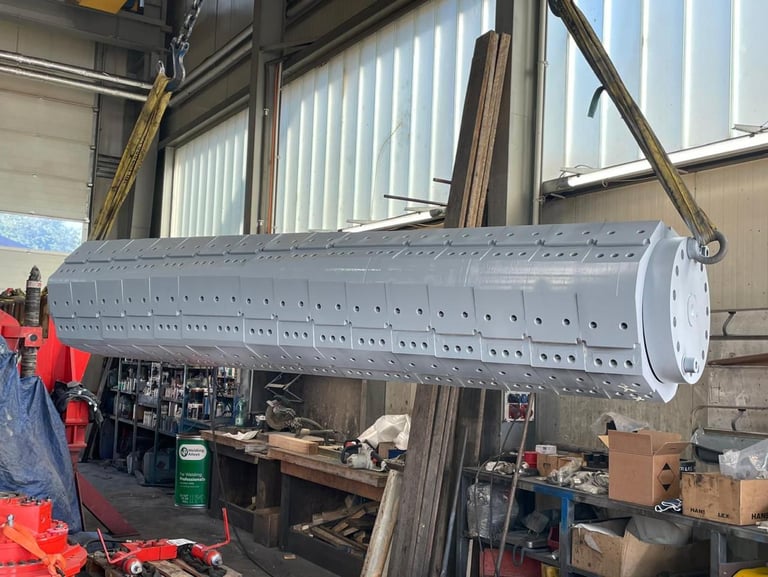

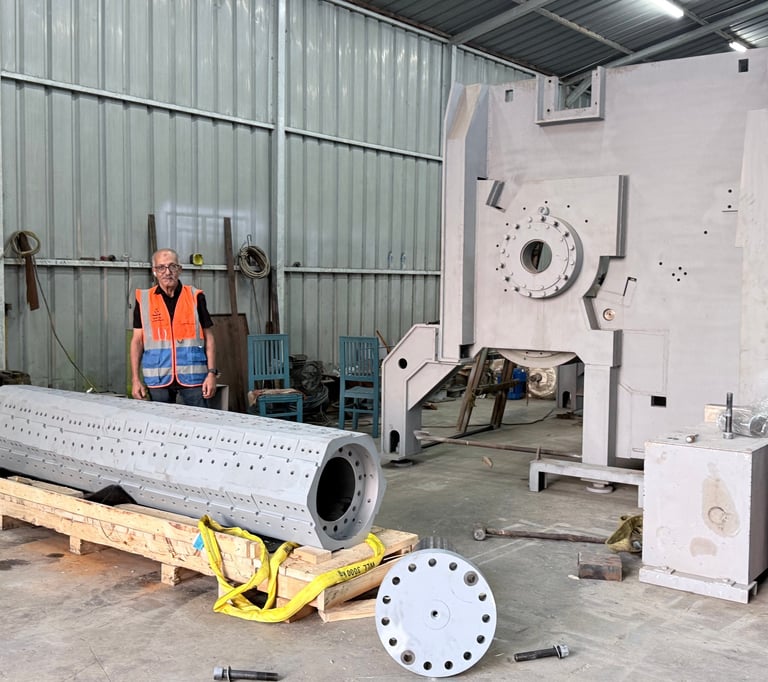

Main Shaft

Diameter: 57 cm, Length: 360 cm, made from 42CrMo steel and precisely shaped using a 5-Axis CNC machine.

Eight precision-designed screens that control final output size, easy to remove and clean, operated via an intelligent hydraulic circuit.

Screens (Sieves)

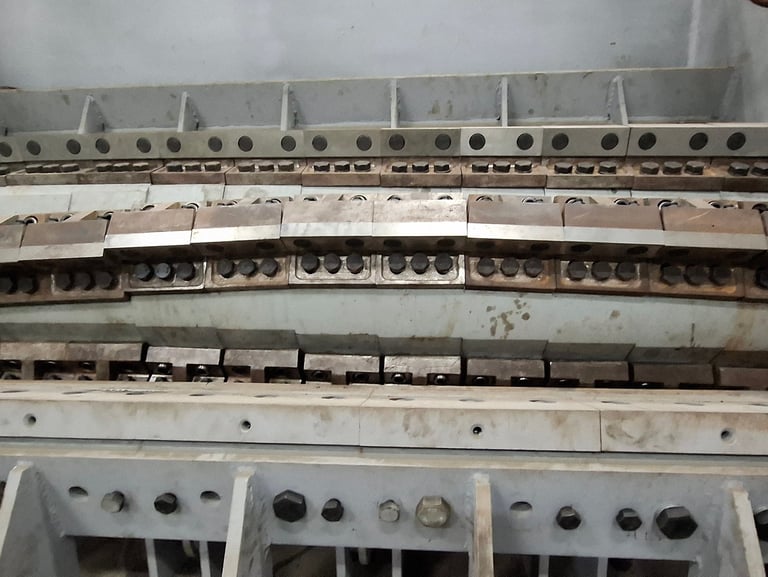

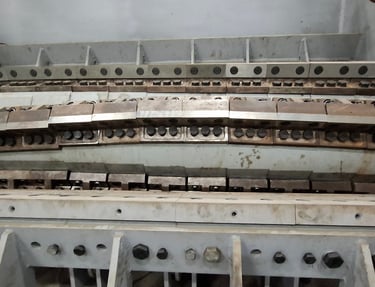

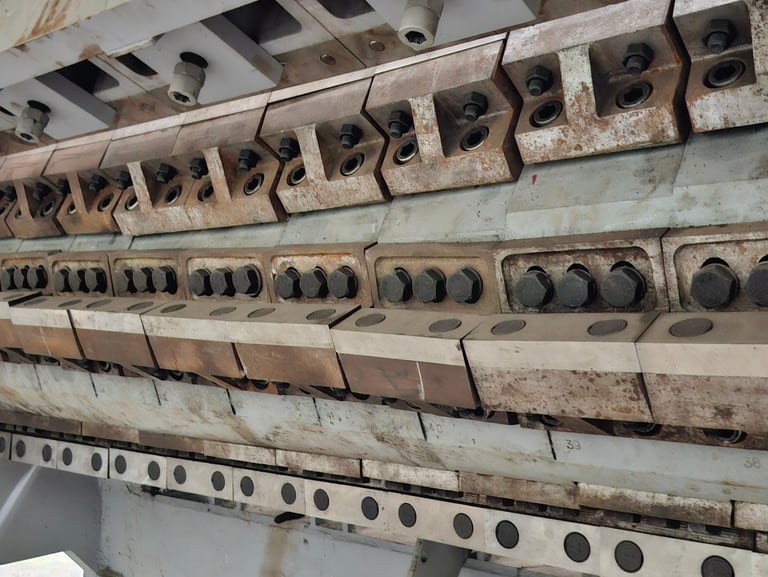

Fixed Blades

A total of 32 blades (16 on each side), forward and backward adjustable, mounted on C52-grade steel bases with strong clamps and vibration-resistant holders.

Bearings

Model SKF 23244, made in Japan, with an inner diameter of 220 mm and outer diameter of 400 mm, housed in 42CrMo-grade steel brackets.

Hydraulic System & Valves

Italian-made high-performance units, powered by a German 40 HP motor.

Feeding Compression System

A smart reciprocating system that compresses materials evenly, with adjustable pressure and stroke settings to optimize shredding efficiency.

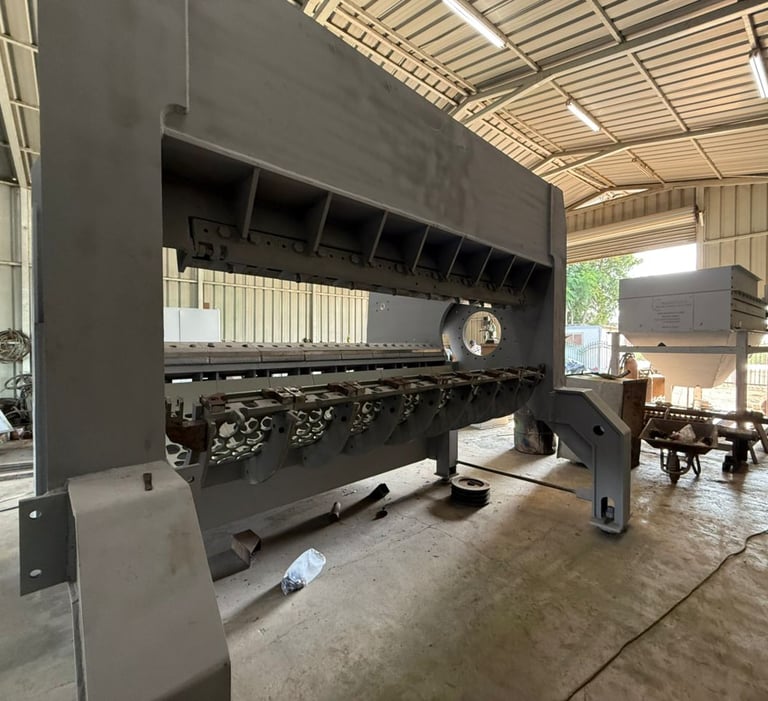

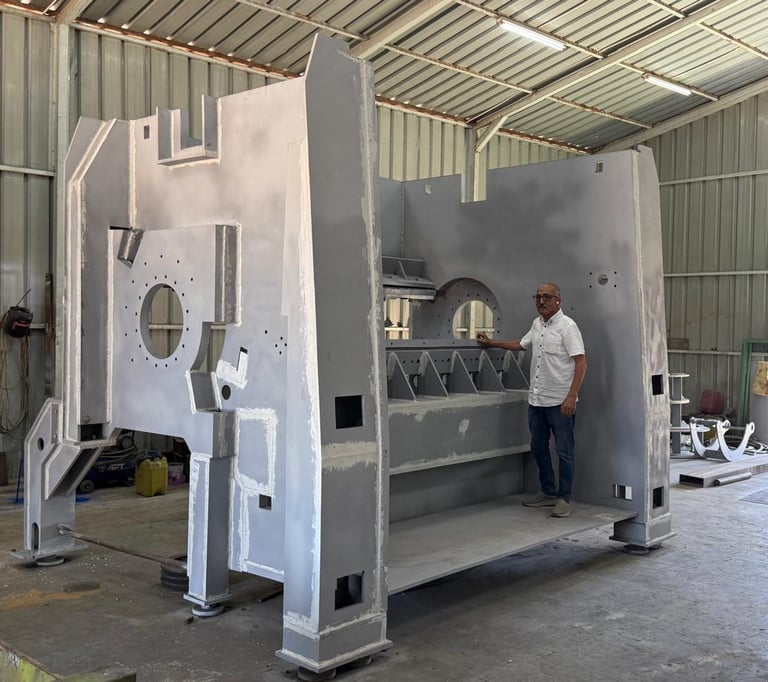

Constructed from C52-grade steel, with a thickness of up to 60 mm, ensuring durability and stability under heavy-duty operation.

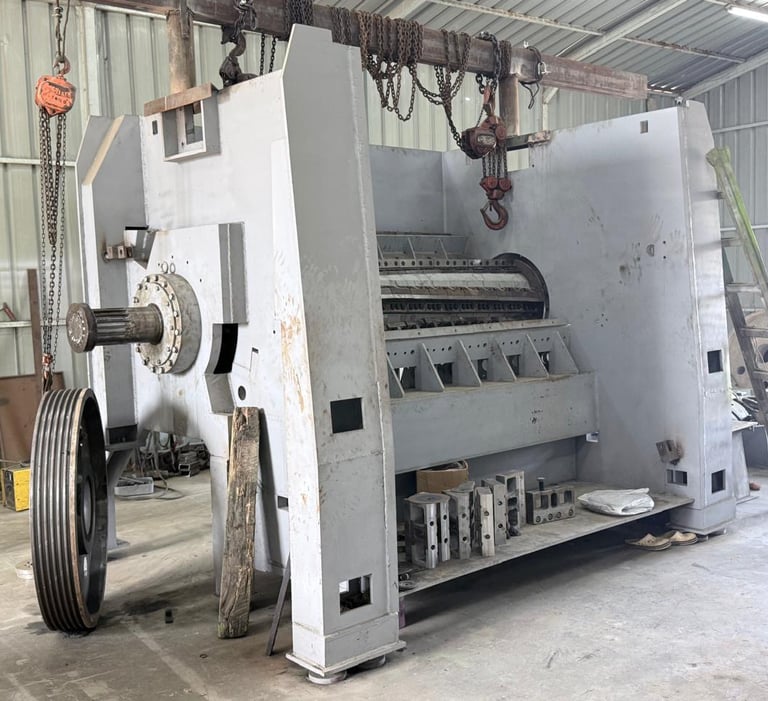

Main Frame (Chassis)

Overall Dimensions

Dimensions: 6 meters (L) × 3 meters (W) × 4.25 meters (H)
Approximate Weight: 35 tons
